您的位置: 首页 > 热门产品 > 瑞士Baumer OptoPulse EN580E.IL(58 mm ,基础款)增量式工业编码器

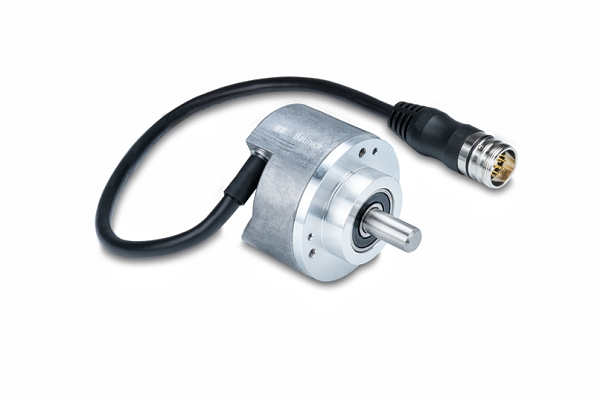

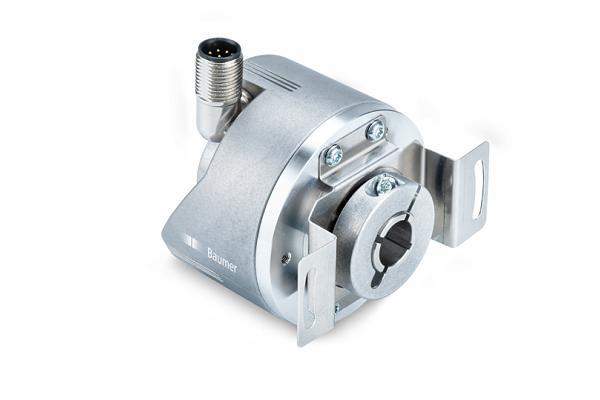

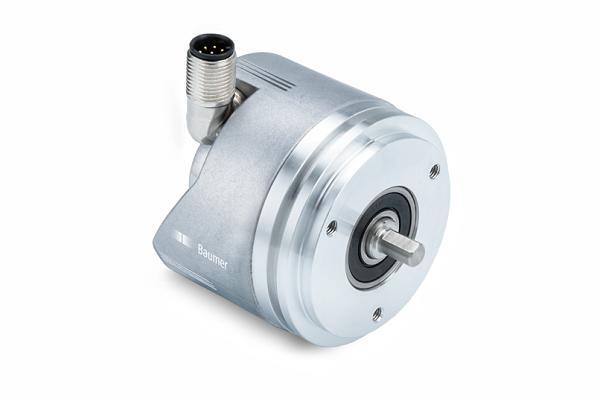

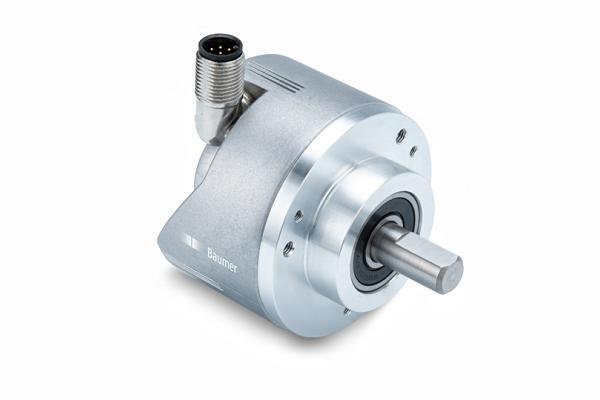

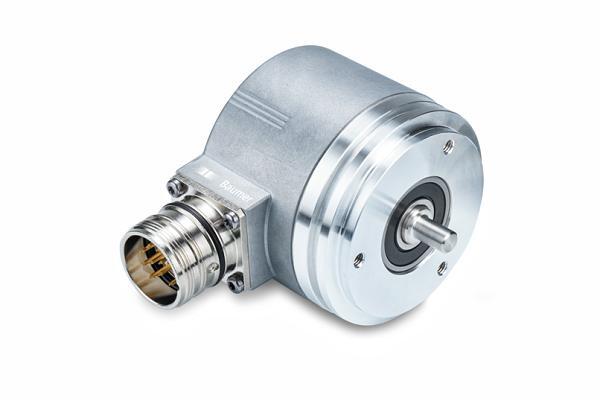

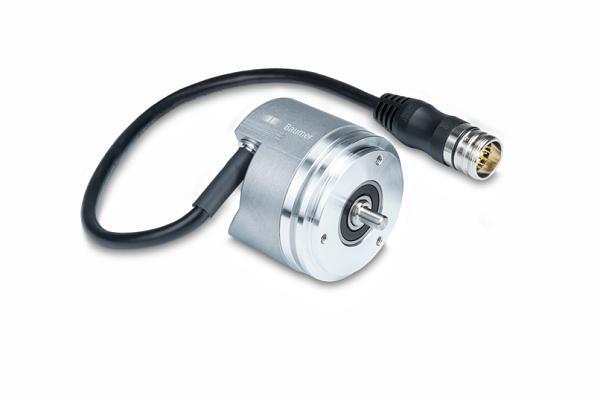

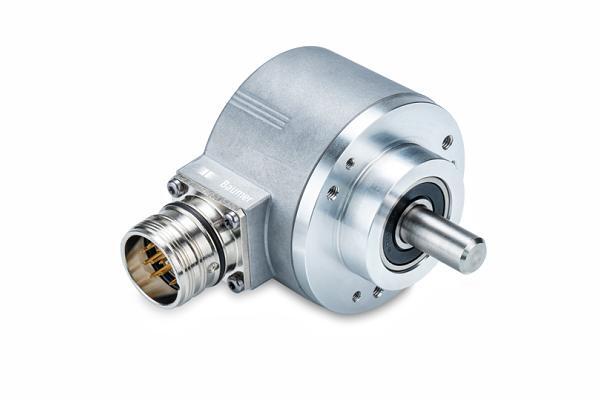

瑞士Baumer OptoPulse EN580E.IL(58 mm ,基础款)增量式工业编码器
详情说明

一、OptoPulse EN580E.IL增量式工业编码器(58 mm ,基础款)特点

        • OptoPulse EN580E.IL增量式编码器高达 4096 ppr;

        • 实心轴或通孔空心轴;

        • TTL、HTL、正余弦;

        • 该编码器连接灵活性高。

1685605817569510    1685605850636109    1685605877431297    1685605903603897

1685605925789486    1685605948744257    1685605965197297



二、OptoPulse EN580E.IL增量式工业编码器(58 mm ,基础款)的具体型号

产品名称法兰轴类型连接每圈脉冲数 / 波数输出方式工作温度

optoPulse EN580E.IL-SC10.GA1H1.01024.K

货号: 11245797

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SC10.GA1H1.02048.K

货号: 11246016

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible2048HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SC10.GA1H1.04096.K

货号: 11246017

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible4096HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SC10.GA1S1.01024.K

货号: 11246031

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024正余弦(1 Vpp)-25...+100 °C

optoPulse EN580E.IL-SC10.GA1T1.01024.K

货号: 11246018

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GA1T1.02048.K

货号: 11246019

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GA1T1.04096.K

货号: 11246030

夹紧法兰ø10 x 20 mm,实心轴带紧固面Connector M12, 8-pin, flexible4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GB1T2.01024.K

货号: 11246032

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GB1T2.02048.K

货号: 11246033

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GB1T2.04096.K

货号: 11246034

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GE1T2.01024.K

货号: 11246035

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GE1T2.02048.K

货号: 11246036

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SC10.GE1T2.04096.K

货号: 11246037

夹紧法兰ø10 x 20 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GA1H1.01024.K

货号: 11245939

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SU06.GA1H1.02048.K

货号: 11246002

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible2048HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SU06.GA1H1.04096.K

货号: 11246003

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible4096HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-SU06.GA1S1.01024.K

货号: 11246007

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024正余弦(1 Vpp)-25...+100 °C

optoPulse EN580E.IL-SU06.GA1T1.01024.K

货号: 11246004

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GA1T1.02048.K

货号: 11246005

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GA1T1.04096.K

货号: 11246006

同步法兰ø6 x 10 mm,实心轴带紧固面Connector M12, 8-pin, flexible4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GB1T2.01024.K

货号: 11246010

同步法兰ø6 x 10 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GB1T2.02048.K

货号: 11246011

同步法兰ø6 x 10 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GB1T2.04096.K

货号: 11246012

同步法兰ø6 x 10 mm,实心轴带紧固面Flange connector M23, 12-pin, CCW4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GE1T2.01024.K

货号: 11246013

同步法兰ø6 x 10 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GE1T2.02048.K

货号: 11246014

同步法兰ø6 x 10 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-SU06.GE1T2.04096.K

货号: 11246015

同步法兰ø6 x 10 mm,实心轴带紧固面Flylead connector M23, 12-pin, tangential, length 300 mm4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GA1H1.01024.K

货号: 11245970


ø12 mm (通孔型)Connector M12, 8-pin, flexible1024HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-TT12.GA1H1.02048.K

货号: 11245980


ø12 mm (通孔型)Connector M12, 8-pin, flexible2048HTL/推挽式-25...+100 °C (参见通用说明)

optoPulse EN580E.IL-TT12.GA1H1.04096.K

货号: 11245981


ø12 mm (通孔型)Connector M12, 8-pin, flexible4096HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-TT12.GA1S1.01024.K

货号: 11246038


ø12 mm (通孔型)Connector M12, 8-pin, flexible1024正余弦(1 Vpp)-25...+100 °C

optoPulse EN580E.IL-TT12.GA1T1.01024.K

货号: 11245967


ø12 mm (通孔型)Connector M12, 8-pin, flexible1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GA1T1.02048.K

货号: 11245968


ø12 mm (通孔型)Connector M12, 8-pin, flexible2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GA1T1.04096.K

货号: 11245969


ø12 mm (通孔型)Connector M12, 8-pin, flexible4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GB1T2.01024.K

货号: 11245982


ø12 mm (通孔型)Flange connector M23, 12-pin, CCW1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GB1T2.02048.K

货号: 11245984


ø12 mm (通孔型)Flange connector M23, 12-pin, CCW2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GB1T2.04096.K

货号: 11245986


ø12 mm (通孔型)Flange connector M23, 12-pin, CCW4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GE1T2.01024.K

货号: 11245987


ø12 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GE1T2.02048.K

货号: 11245988


ø12 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT12.GE1T2.04096.K

货号: 11245989


ø12 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GA1H1.01024.K

货号: 11245993


ø14 mm (通孔型)Connector M12, 8-pin, flexible1024HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-TT14.GA1H1.02048.K

货号: 11245994


ø14 mm (通孔型)Connector M12, 8-pin, flexible2048HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-TT14.GA1H1.04096.K

货号: 11245995


ø14 mm (通孔型)Connector M12, 8-pin, flexible4096HTL/推挽式-25...+100 °C

optoPulse EN580E.IL-TT14.GA1S1.01024.K

货号: 11246039


ø14 mm (通孔型)Connector M12, 8-pin, flexible1024正余弦(1 Vpp)-25...+100 °C

optoPulse EN580E.IL-TT14.GA1T1.01024.K

货号: 11245990


ø14 mm (通孔型)Connector M12, 8-pin, flexible1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GA1T1.02048.K

货号: 11245991


ø14 mm (通孔型)Connector M12, 8-pin, flexible2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GA1T1.04096.K

货号: 11245992


ø14 mm (通孔型)Connector M12, 8-pin, flexible4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GB1T2.01024.K

货号: 11245996


ø14 mm (通孔型)Flange connector M23, 12-pin, CCW1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GB1T2.02048.K

货号: 11245997


ø14 mm (通孔型)Flange connector M23, 12-pin, CCW2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GB1T2.04096.K

货号: 11245998


ø14 mm (通孔型)Flange connector M23, 12-pin, CCW4096TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GE1T2.01024.K

货号: 11245999


ø14 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm1024TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GE1T2.02048.K

货号: 11246000


ø14 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm2048TTL/RS422-25...+100 °C

optoPulse EN580E.IL-TT14.GE1T2.04096.K

货号: 11246001


ø14 mm (通孔型)Flylead connector M23, 12-pin, tangential, length 300 mm4096TTL/RS422-25...+100 °C
